Cable troncal multimodo de 1M 8/12/24f LC OM3/OM4 MPO MTP Cable de conexión de fibra óptica

MPO
El cable de conexión de fibra óptica se utiliza para conectar el equipo y los componentes en la red de fibra óptica y está compuesto por un cuerpo exterior de polímero y un conjunto interior equipado con un mecanismo de alineación de precisión. La combinación de manguitos de alineación de cerámica/bronce fosforoso y una carcasa de polímero moldeado con precisión proporciona un rendimiento mecánico y óptico constante a largo plazo.
Cantidad
enviar contacto
Añadir al carrito
MPO / MTP Optical Patch Cord
Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features
MPO connector complied with IEC-61754-7
A quick-to-deploy
Scalable solution
High compatibility,flexibility&system performance
Lower installation cost
Applications
SAN (Storage area Network)data center LAN
LAN/SAN switch equipment distribution area(EDA)
Emerging 40G and 100G protocol

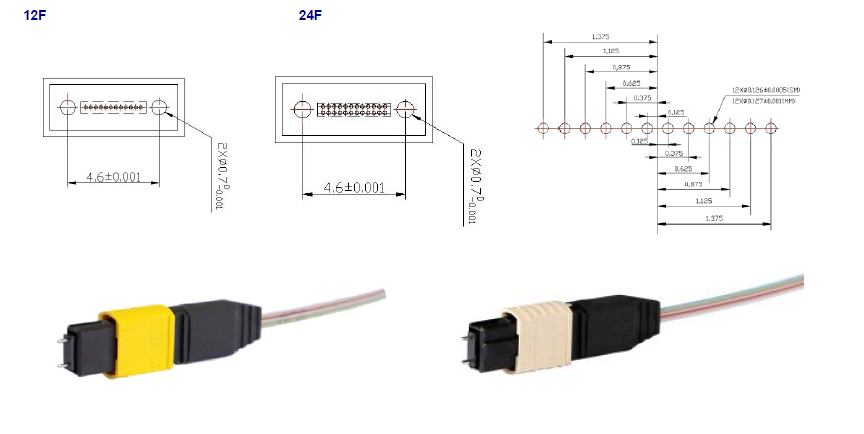

MPO Connector
Standard SM MT Ferrule
Low Loss SM MT Ferrule
Standard MM MT Ferrule
Low Loss MM MT Ferrule
Polish
APC
PC
APC
PC
PC
PC
Insertion Loss(dB)
Typical
0.50
0.50
0.30
0.30
0.50
0.30
Maximun
0.70
0.70
0.50
 0.50
0.70
0.50
Return Loss（dB）
60
45
60
45
20
20
Exchangeability(dB）
≤0.3
Durability（dB）
≤0.2dB (500 Matings,per EIA-455-21A)
Tensile Strength（dB）
≤0.3dB (Max 66N)
Operating temperature（℃）
-20~+60
Storage temperature（℃）
-40~+80
MT Ferrule(Male&FEmale)
