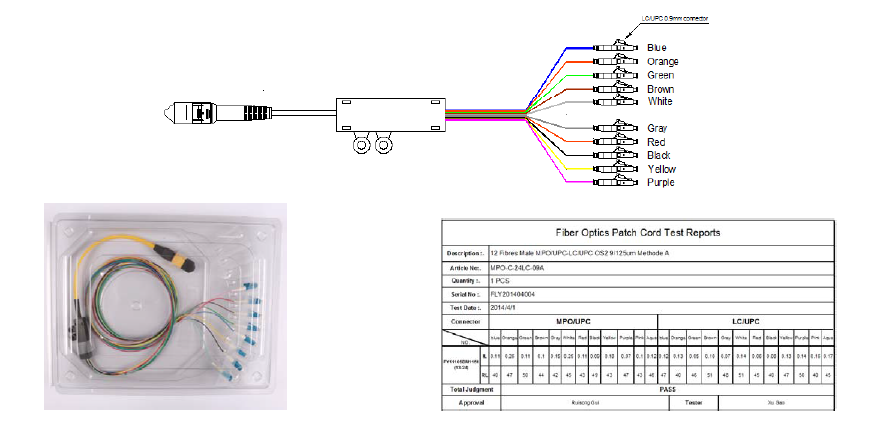

MPO to LC Patch Cord
MPO to LC Patch Cord
MPO to LC Patch Cord
MPO to LC Patch Cord
MPO to LC Patch Cord

8 12 conector multimodo MPO del cable OM3 OM4 Fanout del MTP de 24 núcleos al cordón de remiendo de la fibra óptica del LC

MPO to LC
Cantidad
enviar contacto
Añadir al carrito
Features
  • MPO connector complied with IEC-61754-7
  • A quick-to-deploy
  • Scalable solution
  • High compatibility,flexibility&system performance
  • Lower installation cost
Applications
  • SAN (Storage area Network)data center LAN
  • LAN/SAN switch equipment distribution area(EDA)
  • Emerging 40G and 100G protocol
MPO Connector
Standard SM MT Ferrule
Low Loss SM MT Ferrule
Standard MM MT Ferrule
Low Loss MM MT Ferrule
Polish
APC
PC
APC
PC
PC
PC
Insertion Loss(dB)
Typical
0.50
0.50
0.30
0.30
0.50
0.30
Maximun
0.70
0.70
0.50
0.50
0.70
0.50
Return Loss（dB）
60
45
60
45
20
20
Exchangeability(dB）
≤0.3
Durability（dB）
≤0.2dB (500 Matings,per EIA-455-21A)
Tensile Strength（dB）
≤0.3dB (Max 66N)
Operating temperature（℃）
-20~+60
Storage temperature（℃）
-40~+80
Packed with Plastic box,Label Size:190mm*150mm(A5)
