MPO to LC Patch Cord
MPO to LC Patch Cord
MPO to LC Patch Cord
MPO to LC Patch Cord
MPO to LC Patch Cord

8 12 24 core MTP Fanout Cable OM3 OM4 Multimode Connector MPO to LC Fiber Optic Patch Cord

MPO to LC
Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Quantity
Contact Now
add to cart
Features
  • MPO connector complied with IEC-61754-7
  • A quick-to-deploy
  • Scalable solution
  • High compatibility,flexibility&system performance
  • Lower installation cost
Applications
  • SAN (Storage area Network)data center LAN
  • LAN/SAN switch equipment distribution area(EDA)
  • Emerging 40G and 100G protocol
MPO Connector
Standard SM MT Ferrule
Low Loss SM MT Ferrule
Standard MM MT Ferrule
Low Loss MM MT Ferrule
Polish
APC
PC
APC
PC
PC
PC
Insertion Loss(dB)
Typical
0.50
0.50
0.30
0.30
0.50
0.30
Maximun
0.70
0.70
0.50
0.50
0.70
0.50
Return Loss（dB）
60
45
60
45
20
20
Exchangeability(dB）
≤0.3
Durability（dB）
≤0.2dB (500 Matings,per EIA-455-21A)
Tensile Strength（dB）
≤0.3dB (Max 66N)
Operating temperature（℃）
-20~+60
Storage temperature（℃）
-40~+80
Packed with Plastic box,Label Size:190mm*150mm(A5)

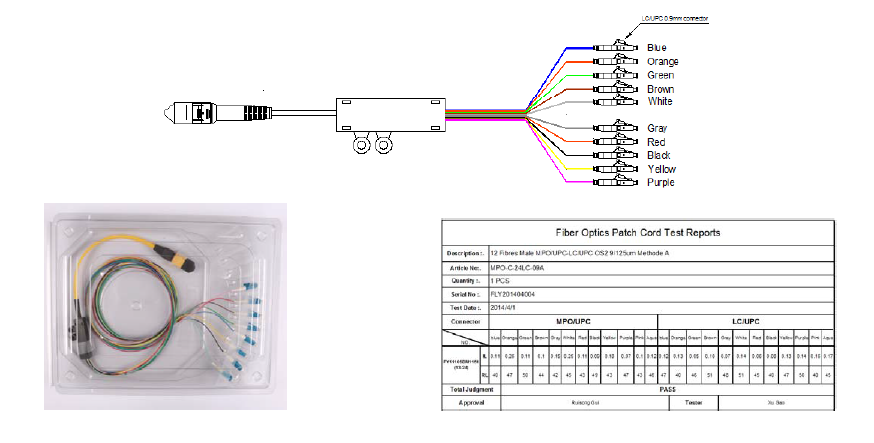

MPO to LC Patch Cord
