Digital Diagnostic Function (DDM) for Optical transceiver

2023-09-19

With the rapid development of optical communications, many scenes in our work and life have now realized the "advancing of light and retreat of copper". In other words, metal media communications represented by coaxial cables and network cables are gradually being replaced by optical fiber media.
The optical module is one of the core components of the optical fiber communication system.

Digital Diagnostic Monitoring (DDM), also known as Digital Optical Monitoring (DOM) or Digital Diagnostics Interface (DDI), is a feature found in optical transceivers. It allows for real-time monitoring and reporting of various parameters and performance metrics of the optical transceiver and the optical link it is connected to. DDM is particularly useful for network administrators and technicians to manage and troubleshoot optical networks effectively.
Here are some of the key parameters and metrics that DDM can monitor and report on:

1.Optical Power Levels: DDM provides information on the transmit (Tx) and receive (Rx) optical power levels. This helps ensure that the optical signal is within the specified power range for reliable communication. If the power levels fall outside the acceptable range, it can indicate issues like fiber attenuation or a faulty transceiver.
2.Temperature: Optical transceivers can operate within a specific temperature range, and DDM monitors the internal temperature of the transceiver. If the temperature exceeds the safe range, it could lead to performance degradation or failure.
3.Voltage and Current: DDM also reports voltage and current levels within the transceiver. Abnormal voltage or current readings can indicate issues with the power supply or the transceiver's internal components.
4.Module Information: DDM provides essential module information such as the part number, serial number, manufacturer, and date of manufacture. This information can be helpful for inventory management and tracking.
5.Laser Bias Current: This metric monitors the current supplied to the laser diode. Deviations from the expected bias current can indicate problems with the laser, affecting signal quality.
6.Alarm and Warning Flags: DDM generates alarm and warning flags when any of the monitored parameters fall outside the specified thresholds. These flags can trigger alerts or notifications to network administrators, allowing for proactive troubleshooting.
7.Transceiver Status:DDM provides information about the operational status of the transceiver, including whether it is in a normal operational state or if there are issues requiring attention.
8.Digital Diagnostic Information:DDM can report additional digital diagnostic information specific to the transceiver type, such as bit error rate (BER) and diagnostic flags. This information can be useful for assessing the quality of the optical link and diagnosing performance issues.

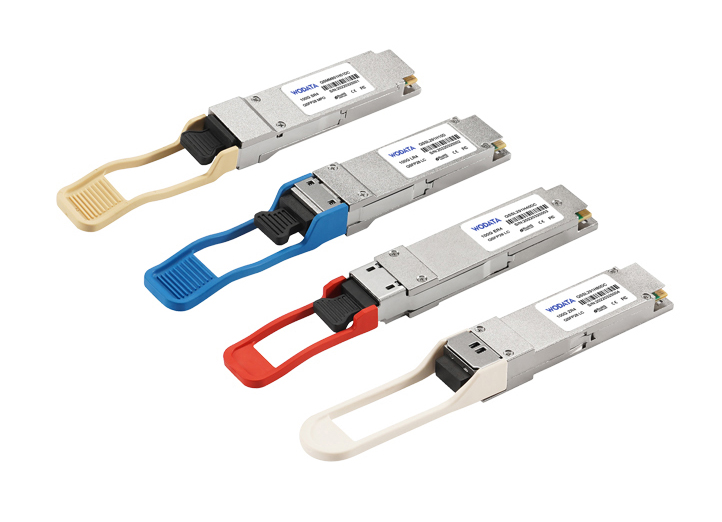

By monitoring these parameters in real-time, DDM enables network operators to detect and address issues promptly, reducing downtime and improving overall network reliability. It also aids in optimizing network performance by allowing administrators to make informed decisions about link quality and capacity planning. Different transceiver types (e.g., SFP, QSFP, XFP) may support varying levels of DDM capabilities, so it's essential to check the datasheet for a specific transceiver to understand the extent of its monitoring features.
