25G SR SFP28 850nm 100m DOM Duplex LC MMF Optical Transceiver Module
SFP28 SR
SFP28 transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3). The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status. Each SFP28 transceiver module is individually tested on a series of Cisco switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI, and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.
Quantity
Product Highlights
● Max. Power Consumption 1W
● Tested in Targeted Switch for Superior Performance, Quality, and Reliability
● High-speed Connectivity Compliant to IEEE 802.3by and IEEE 802.3cc
● Support Real-time Configuration
● Support 4x25G Fan out and Easy Migration to 100G Platforms
● Hot Pluggable SFP28 MSA Compliant
● Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
● Class 1 FDA Laser Safety and RoHS Compliant
SFP28 | 25.78Gbps | ||
SFF-8472, SFF-8024, SFF-8431, SFF-8432 | |||
25Gb/s SFP28 Optical Transceiver
| Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
| SFP28 | 25G | 850nm | 100m | VCSEL | PIN | LC | -9.1~2.4dBm | -11dBm |
| SFP28 | 25G | 1310nm | 10KM | DFB | PIN | LC | -5~2dBm | -13dBm |
| SFP28 | 25G | 1270/1330nm | 10KM | DFB | PIN | LC | -5~2dBm | -13.3dBm |
| SFP28 | 25G | 1270/1310nm | 30KM | DFB | APD | LC | 0~5dBm | -18.5dBm |
| SFP28 | 25G | CWDM | 10KM | DFB CWDM | PIN | LC | 0~5dBm | -10.6 dBm |
| SFP28 | 25G | DWDM | 10KM | EML | PIN | LC | -0~5dBm | -10.6 dBm |

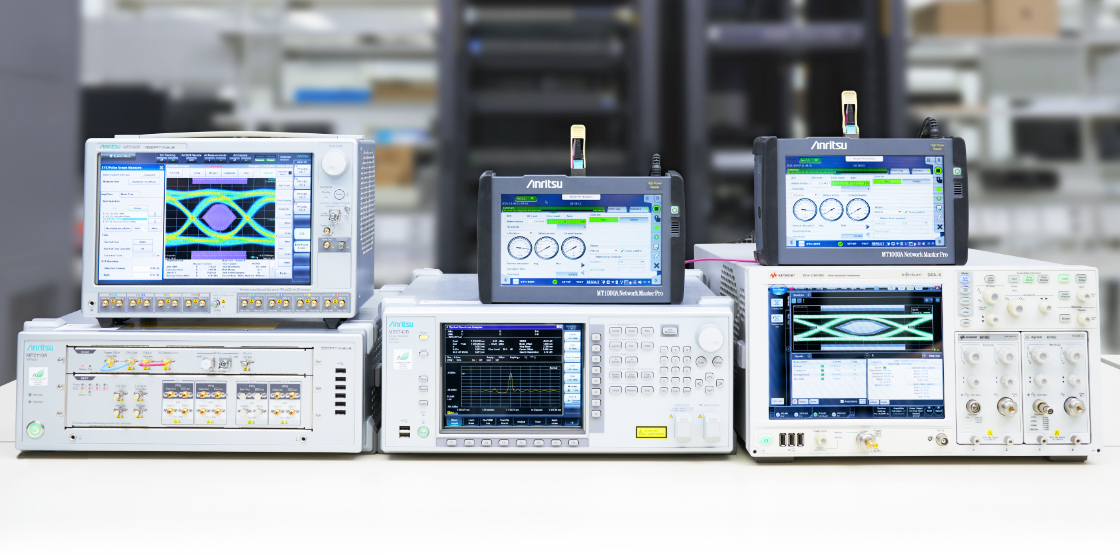

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
