25G DWDM SFP28 10km Industrial Optical Transceiver Module
SFP28 DWDM
SFP28 transceiver provides 25GBase-DWDM throughput up to 10km over single mode fiber (SMF) using a wavelength of 1561.42nm via an LC duplex connector. With these features, this easy to install, hot swappable transceiver provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Quantity
Product Highlights
● Max. Power Consumption 2W
● Tested in Targeted Switch for Superior Performance, Quality, and Reliability
● DWDM for Multiple Applications over One Duplex Fiber
● Industrial Temp -40°C to +85 °C
● Support Real-time Configuration
● Hot Pluggable SFP28 MSA Compliant
● Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
● Class 1 FDA Laser Safety and RoHS Compliant
SFP28 | 25.78Gbps | ||
1561.42nm | |||
Duplex | SMF | ||
EML | APD | ||
0~5dBm | ＜-14dBm | ||
-5dBm | |||
＞6dB | |||
CDR | TX and RX | FEC Function | Not Supported |
| SFF-8431, SFF-8472, RoHS | |||
25Gb/s SFP28 Optical Transceiver
| Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
| SFP28 | 25G | 850nm | 100m | VCSEL | PIN | LC | -9.1~2.4dBm | -11dBm |
| SFP28 | 25G | 1310nm | 10KM | DFB | PIN | LC | -5~2dBm | -13dBm |
| SFP28 | 25G | 1270/1330nm | 10KM | DFB | PIN | LC | -5~2dBm | -13.3dBm |
| SFP28 | 25G | 1270/1310nm | 30KM | DFB | APD | LC | 0~5dBm | -18.5dBm |
| SFP28 | 25G | CWDM | 10KM | DFB CWDM | PIN | LC | 0~5dBm | -10.6 dBm |
| SFP28 | 25G | DWDM | 10KM | EML | PIN | LC | -0~5dBm | -10.6 dBm |

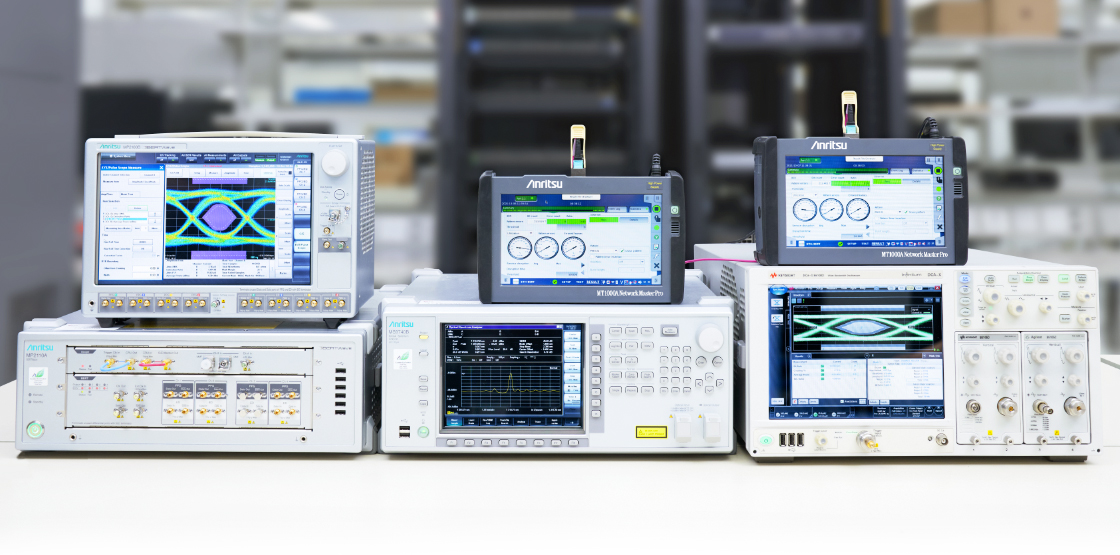

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
