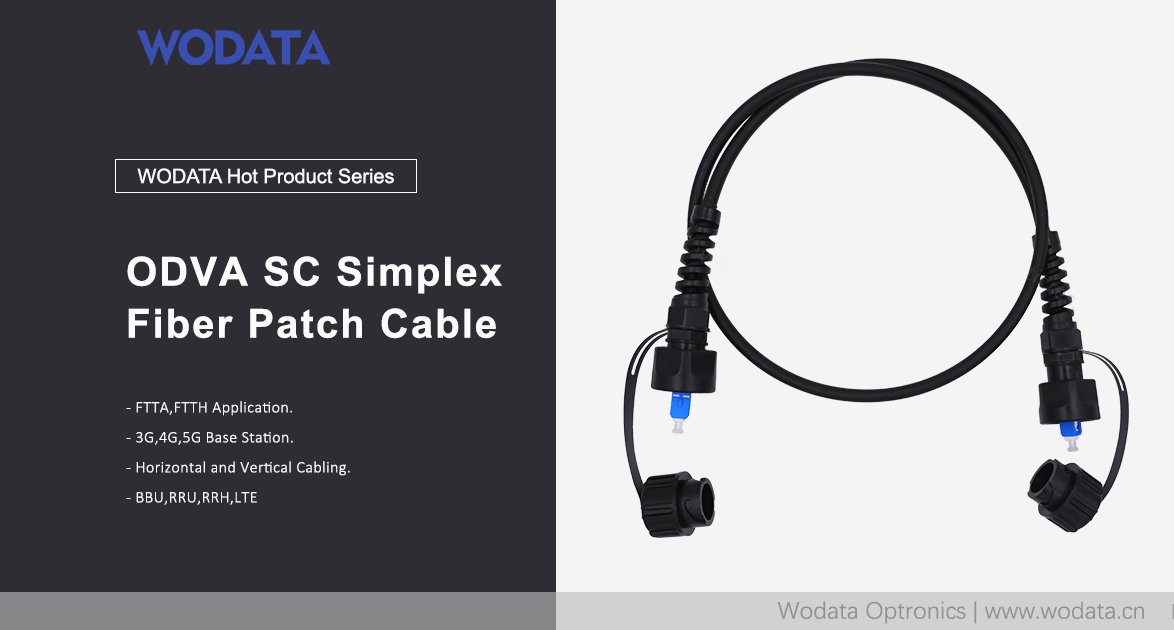

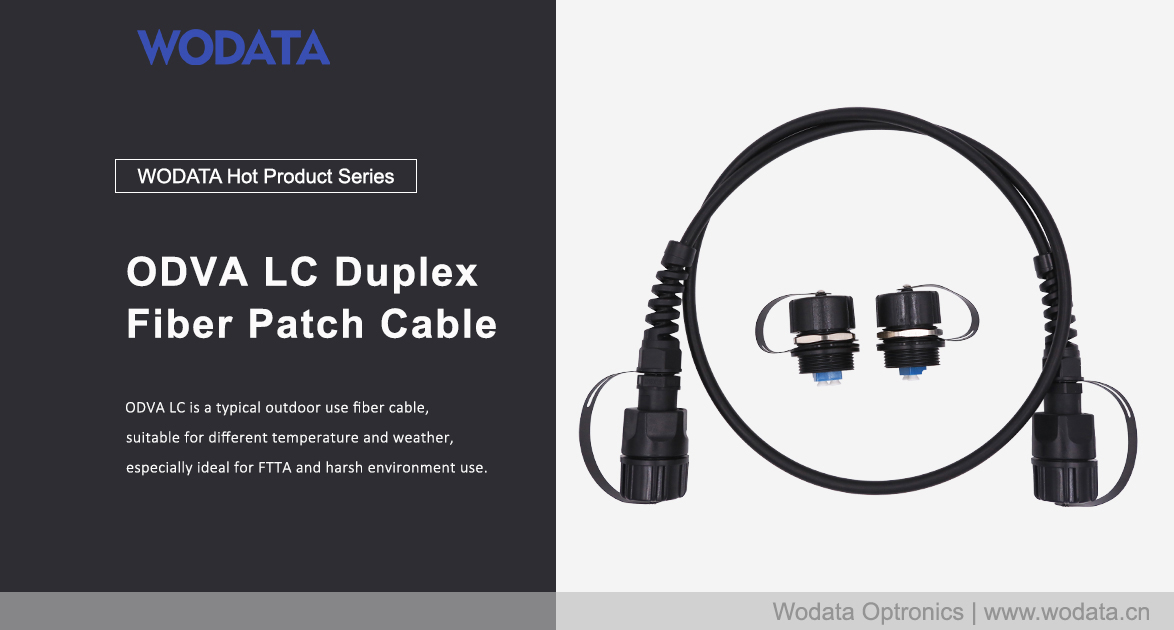

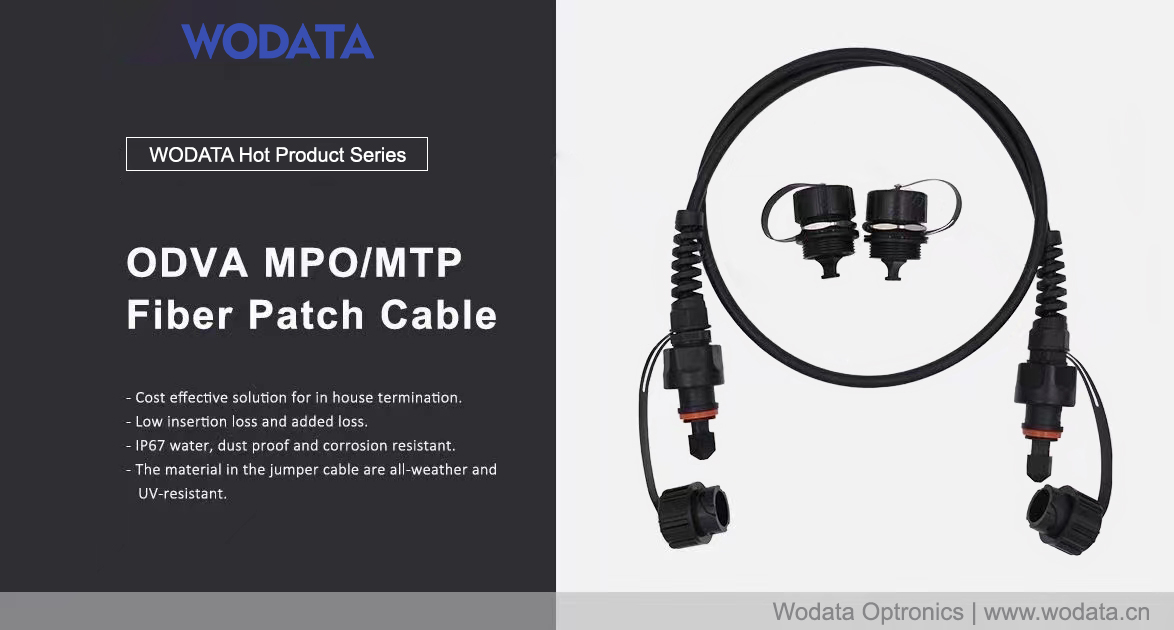

Cables de parche blindados SC LC de puente de fibra óptica ODVA MPO/MTP impermeables para exteriores

ODVA

Cantidad

enviar contacto

Añadir al carrito

Features

Cost effective solution for in house termination.

Low insertion loss and added loss.

IP67 water, dust proof and corrosion resistant.

The material in the jumper cable are all-weather and UV-resistant

Fibers single mode or multimode.

Built-in socket with square or hexagonal flange.

Resist strong pressure and stretching.

Can effectively adapt to harsh porous environment.

Applications

Multi-purpose outdoor

For connection between distribution box and RRH

Deployment in Remote Radio Head cell tower

FTTA Projects

CATV, LAN, MAN, WAN

Test & Measurement..

Specification	SM	MM
Operating Wavelength（nm）	1310, 1550	850， 1300
Typical Insertion Loss（dB）	0.20	0.15
Max. Insertion Loss（dB）	Low IL≤0.35, Standard IL≤0.5	Low IL≤0.35, Standard IL≤0.5
Return Loss（In/Out）（dB）	APC≥50	Standard IL UPC≥25, Low IL UPC≥35
Interchangeability（dB）	≤0.2	≤0.2
Repeatability（dB）	≤0.1
Operating Temperature（℃）	-10 ～ +75
Storage Temperature（℃）	-40 ～ +85
Fiber Type	OS2/OM1 OM2 OM3 OM4 OM5
Fiber Diameter (mm)	Φ5.0mm, Φ7.0mm
Waterproof Grade	IP68
Flame Retardant Grade	UL94V-0
Mechanical Durability (Times)	500 times
Cable Tension (N)	≥15N
