48x10G SFP+ 6x40/100G QSFP28 6800 Series Data Center Switch
6820H-48S6CQ
● High-Density 10GE Access
● Inter-device Link Aggregation, High Efficiency and Reliability
● Standard Interfaces, Enabling Openness and Interoperability
● ZTP, Implementing Automatic O&M
● FabricInsight-based Intelligent O&M
● Flexible Airflow Design, Improving Energy Efficiency
● Clear Indicators, Simplifying Maintenance
● Inter-device Link Aggregation, High Efficiency and Reliability
● Standard Interfaces, Enabling Openness and Interoperability
● ZTP, Implementing Automatic O&M
● FabricInsight-based Intelligent O&M
● Flexible Airflow Design, Improving Energy Efficiency
● Clear Indicators, Simplifying Maintenance
Cantidad
Product Overview
Huawei CloudEngine 6820H series switches are next-generation 10GE access switches that provide high performance and high port density on data center networks and high-end campus networks. The CloudEngine 6820H series have advanced hardware architecture with 40GE/100GE uplink ports and high-density 10GE access ports. Using Huawei's new software platform. In addition, the CloudEngine 6820H series use a flexible airflow design (front-to-back or back-to-front). CloudEngine 6820H series can work with CloudEngine 16800 or CloudEngine 12800 series data center core switches to build elastic, virtual, and high quality 40GE/100GE full-mesh networks, meeting requirements of cloud computing data centers.
CloudEngine 6820H series provide high-density 10GE access to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also work as core or aggregation switches on campus networks.
Data Center Applications

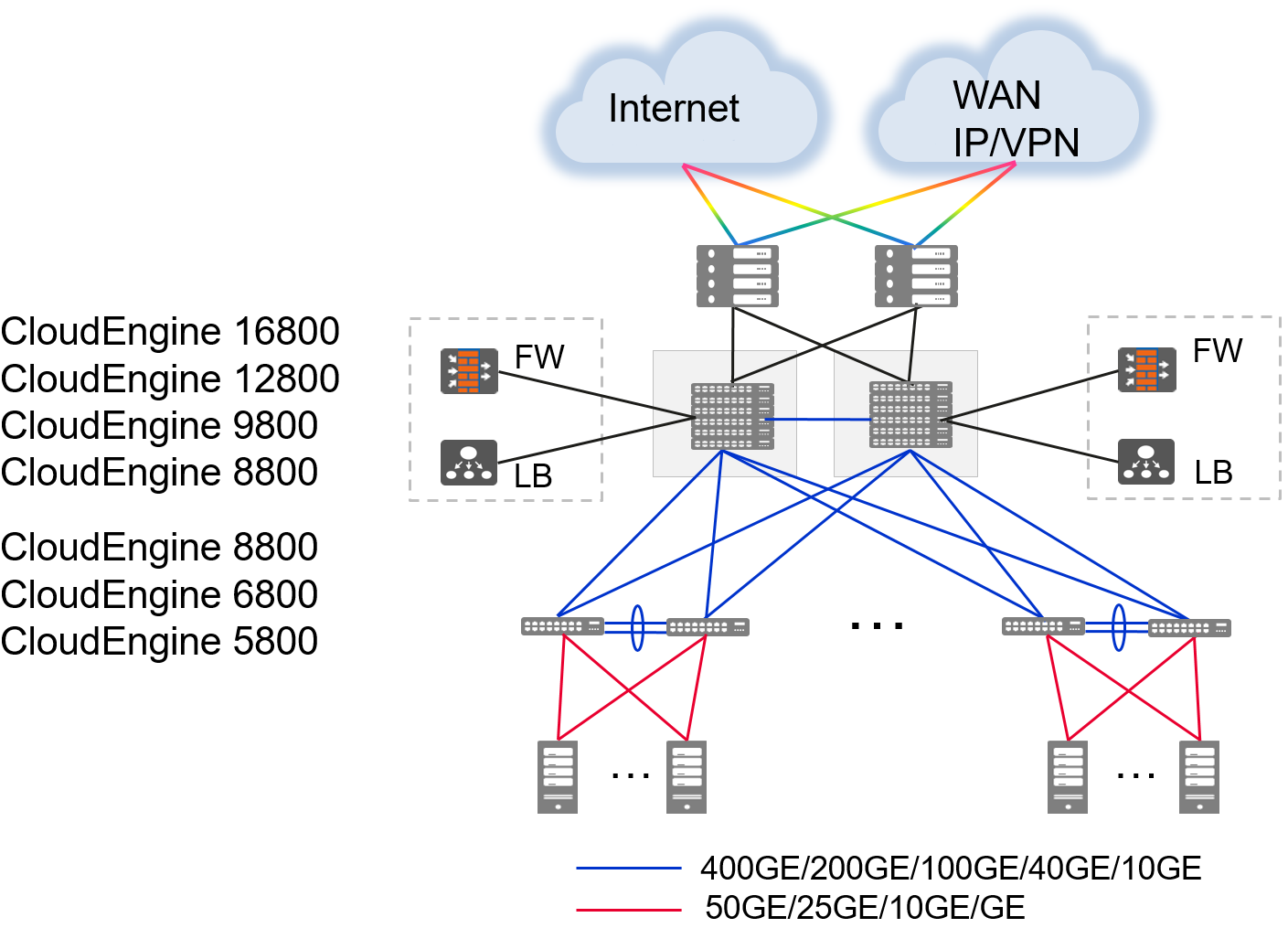

On a typical data center network, CloudEngine 6820H switches work as TOR switches and connect to CloudEngine 16800, CloudEngine 12800 or CloudEngine 8800 core switches using 40GE/100GE ports, building an end-to-end 40GE/100GE full mesh network.
Product Specifications
Item | CloudEngine 6820H-48S6CQ | |
Physical features | Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
Weight | 5.6/7.7 | |
Switching capacity (Tbps) | 2.16 | |
Forwarding performance (Mpps) | 470 | |
10GE SFP+ ports | 48 | |
40/100GE QSFP28 ports | 6 | |
Management interface | Out-of-band management port | 1 x GE management interface |
Console port | 1 x RJ45 interface | |
USB port | 1 | |
Main frequency (GHz) | 1.4 | |
Number of cores | 4 | |
RAM | 4 GB | |
NOR flash | 64 MB | |
NAND flash | 2 GB | |
System | System buffer | 21 MB |
Power supply | Power modules | 600W AC 1000 W -48 V DC 1200 W 380V HVDC |
Heat dissipation | Heat dissipation mode | Air cooling |
Number of fan trays | 4 | |
Environment specifications | Long-term operating temperature (°C) | 0°C to 40°C (0-1800 m) |
Storage temperature (°C) | -40°C to +70°C | |
Device virtualization | M-LAG | |
Network convergence | PFC and ECN | |
Programmability | OPS programming | |
OpenFlow | ||
VLAN | Adding access, trunk, and hybrid interfaces to VLANs | |
Default VLAN | ||
QinQ | ||
MAC address | Dynamic learning and aging of MAC address entries | |
Static, dynamic, and blackhole MAC address entries | ||
Packet filtering based on source MAC addresses | ||
MAC address limiting based on ports and VLANs | ||
IP routing | IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP | |
IPv6 | IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ | |
IP packet fragmentation and reassembly | ||
