Transceptor óptico 40G ER4 QSFP+ 1310nm 40km

QSFP+ ER4

Cantidad

enviar contacto

Añadir al carrito

Product Highlights

Max. Power Consumption 3.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3ba
Compliant to SFF-8436 and QSFP MSA
WD BOX - Support Real-time Configuration
Hot Pluggable QSFP+ Form Factor
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

Form Factor	QSFP+	Max Data Rate	41.25Gbps (4x 10.3125Gbps)
Wavelength	1310nm	Max Cable Distance	40km
Connector	Duplex LC	Media	SMF
Transmitter Type	DFB CWDM	Receiver Type	APD
TX Power	-2.7~4.5dBm	Receiver Sensitivity	<-21.2dBm
Powerbudget	18.5dB	Receiver Overload	-4.5dBm
Typical Power Consumption	≤3.5W	Extinction Ratio	>5.5dB
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
Bit Error Ratio (BER)	1E-12
Protocols	OTN OTU3, 40G Ethernet, SATA/SAS3, MSA Compliant

40Gb/s QSFP+ Optical Transceiver

PACKAGE STYLE	QSFP+ SR4	QSFP+ LR4	QSFP+ ER4	QSFP+ ZR4
WAVELENGTH	850nm	CWDM	CWDM	1310nm
TX OUTPUT(DBM)	-7.6～0.5	-7～2.3	-3.7～4.5	1~6dBm
RX SENSITIVITY(DBM)	-9.5	-11.5	-15.8	<-25dBm
REACH	150M	10KM	40KM	80km
INTERFACE	MPO	LC	LC	Duplex LC
FIBER TYPE	MM	SM	SM	SM

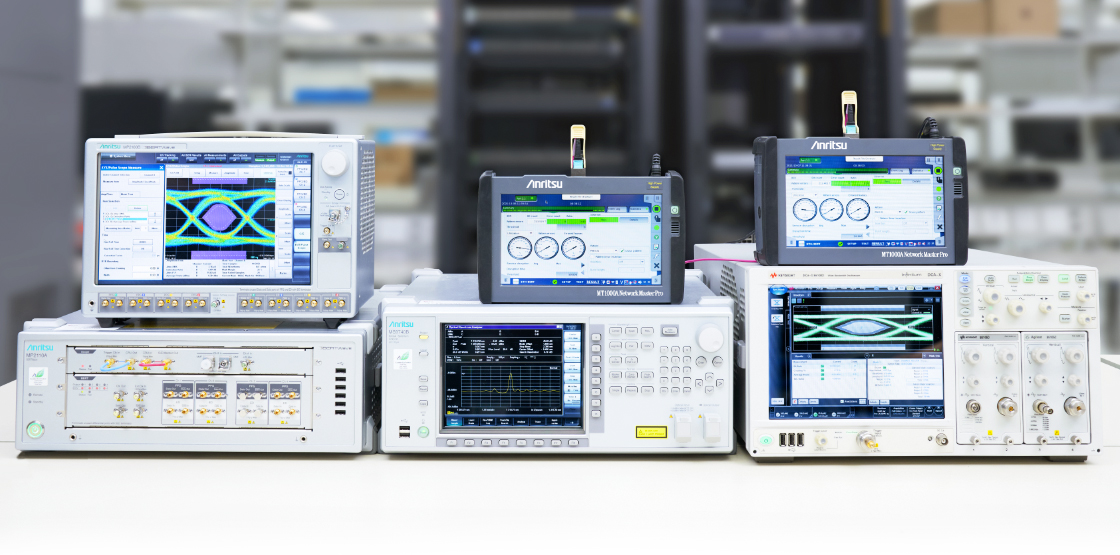

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
