Solución de red de campus
2023-10-17
With the development and changes of IT infrastructure and mobile Internet, in order to achieve more convenient network management and higher network security, WODATA provides campus network solutions for education, medical, enterprise and other industries, adopting hierarchical and modular design ideas , deploy equipment according to the access layer - aggregation layer - core layer, solve the digital problems of the campus network from deployment to use, from management to operation and maintenance, and help users easily build Gigabit access, 10G interconnection, and stable Reliable, minimally managed campus network.

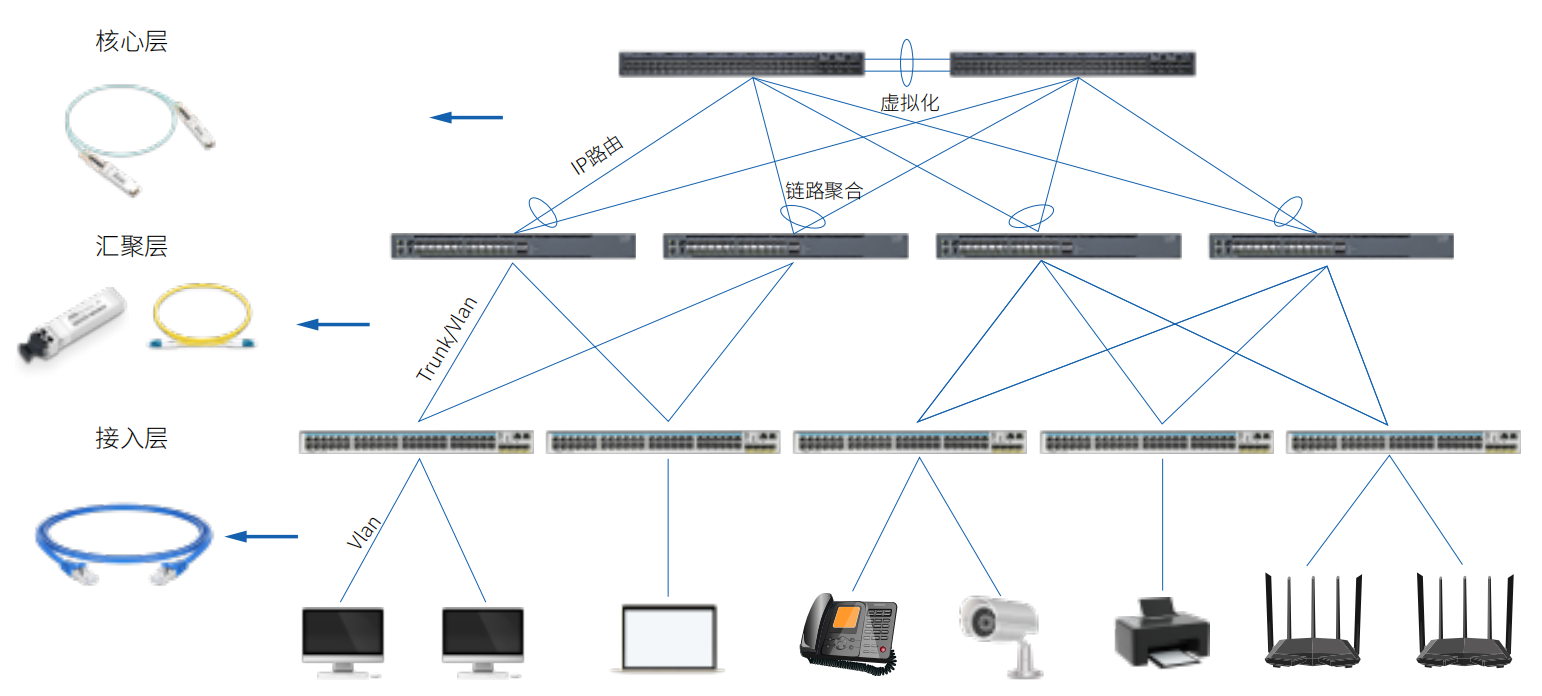

Typical solution
Typical solution
Core layer:
The core switch uses two high-performance core Ethernet switches to ensure high-speed network communication. Through cross-device link aggregation technology, the two switches are connected through an M-LAG link in the middle, making them logically the same. Two devices, the ports on the two devices together form an aggregation port, so that all ports can jointly participate in the forwarding of data traffic. Improve network performance and ensure high reliability and stability of core layer services.
Convergence layer:
Convergence layer:
The aggregation layer serves as a link between the preceding and the following. By aggregating several access devices and services and then transferring them to the core layer, the requirements on the access capabilities of the core layer can be alleviated, allowing the core layer to focus on high-speed forwarding of services. WODATA switches support rich three-layer services, support M-LAG, reduce network layers through virtualization technology between core/aggregation layer devices, ensure redundancy, provide load, and achieve high network availability.
Access layer:
The access layer is the network closest to end users and provides users with various access methods. In addition to deploying rich layer 2 features, the access layer also needs to deploy security, reliability and other related functions. For non-POE equipment, it supports rich layer 2/layer 3 functions, and models with different port numbers can be selected based on the number of terminal devices. For POE devices, it supports smart power over Ethernet and supports stacking, which can provide power for devices such as wireless access points AP and IP cameras.
Access layer:
The access layer is the network closest to end users and provides users with various access methods. In addition to deploying rich layer 2 features, the access layer also needs to deploy security, reliability and other related functions. For non-POE equipment, it supports rich layer 2/layer 3 functions, and models with different port numbers can be selected based on the number of terminal devices. For POE devices, it supports smart power over Ethernet and supports stacking, which can provide power for devices such as wireless access points AP and IP cameras.
Solution advantages
· Hierarchical structure
The core layer, aggregation layer, and access layer are stable and scalable, meeting business needs and access specification requirements.
· High reliability
M-LAG virtualization technology is used to simplify the network architecture, and core business equipment and links are deployed redundantly to ensure the stable operation of production services and build a highly reliable and stable network architecture.
· High performance equipment
It adopts high-performance, high-scalability equipment and multi-port speed configuration combination to meet future business expansion needs.
· Hierarchical structure
The core layer, aggregation layer, and access layer are stable and scalable, meeting business needs and access specification requirements.
· High reliability
M-LAG virtualization technology is used to simplify the network architecture, and core business equipment and links are deployed redundantly to ensure the stable operation of production services and build a highly reliable and stable network architecture.
· High performance equipment
It adopts high-performance, high-scalability equipment and multi-port speed configuration combination to meet future business expansion needs.
value of customer
·Super high integration
Through flexible logical isolation, one network realizes access to all scenarios such as office, production, and security, providing integrated and efficient access capabilities.
· Bandwidth availability
The core supports smooth upgrade from 40G to 100G; the aggregation supports high-density 10G capabilities and high-performance stacking functions; Gigabit/10G access.
· save costs
The product line has industry-leading technological advancement, and self-developed products are highly cost-effective.
· Outstanding supply chain assurance
Goods and services can quickly arrive at the customer site to ensure that customer business goes online in a timely manner.
· Bandwidth availability
The core supports smooth upgrade from 40G to 100G; the aggregation supports high-density 10G capabilities and high-performance stacking functions; Gigabit/10G access.
· save costs
The product line has industry-leading technological advancement, and self-developed products are highly cost-effective.
· Outstanding supply chain assurance
Goods and services can quickly arrive at the customer site to ensure that customer business goes online in a timely manner.
