CFP 100G ER4 1310nm 40km DOM LC SMF Transceiver Module
100G CFP ER4
The CFP ER4 is the optical transceiver module which is a hot pluggable form factor designed for high speed optical networking application. The CFP ER4 is designed for 100 Gigabit Ethernet application and provides 100GBASE-ER4 compliant optical interface, CAUI electrical interface and MDIO module management interface. The CFP ER4 converts 10-lane 10.3Gb/s electrical data streams to 4-lane LAN-WDM 25.78Gb/s optical output signal and 4-lane LAN-WDM 25.78Gb/s optical input signal to 10-lane 10.3Gb/s electrical datastreams.
This 10-lane 10.3Gb/s electrical signal is fully compliant with IEEE 802.3ba CAUI specification. The high performance Cooled LAN-WDM EA-DFB transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 40km links and compliant optical interface with IEEE802.3ba 100GBASE-ER4 requirements.
This 10-lane 10.3Gb/s electrical signal is fully compliant with IEEE 802.3ba CAUI specification. The high performance Cooled LAN-WDM EA-DFB transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 40km links and compliant optical interface with IEEE802.3ba 100GBASE-ER4 requirements.
Quantity
Product Highlights
● Compliant with 100GBASE-ER4
● Support line rates from 103.125 Gbps to 111.81 Gbps
● Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF
● CAUI(10x10G) Electrical Interface and 4-lane 25.78Gb/s optical interface
● Duplex LC optical receptacle
● MDIO Interface for module management
● Single 3.3 V power supply
● Case operating temperature range:0°C to 70°C
● ower dissipation < 9W
Applications
● Data Center &100G Ethernet
● ITU-T OTU4
Standard
● Compliant to IEEE 802.3ba
● Compliant to CFP MSA Hardware Specification
● Compliant to CFP MSA Management Interface Specification
| Form Factor | CFP | Max Data Rate | 103.1 Gbp |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm | Max Cable Distance | 40km |
| Interface | LC duplex | Optical Components | 4x DFB |
| Media | SMF | DOM Support | Yes |
| Protocols | MSA Compliant | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| 100Gb/s QSFP28 Series Optical Transceiver | ||||

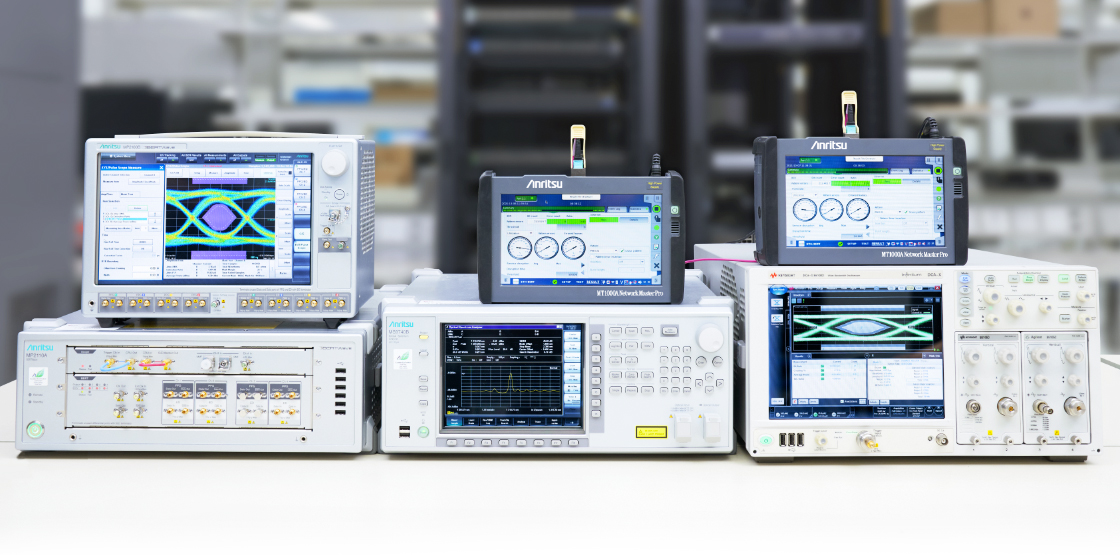

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
