400G SR8 QSFP-DD PAM4 850nm 100m DOM MTP/MPO-16 APC MMF Optical Transceiver Module
400G SR8
The 400GBASE-SR8 module, MTP/MPO-16 connector, up to 100m over parallel OM4 multi-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device. And it can Support 2× 200G-SR4 and 8× 50G-SR.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device. And it can Support 2× 200G-SR4 and 8× 50G-SR.
Quantity
Product Highlights
● Built-in Inphi DSP Chip, Max. Power Consumption 10W
● Tested in Targeted Switches for Superior Performance, Quality, and Reliability
● Compliant with QSFP-DD MSA CMIS Rev4.0, OIF 56G PAM4
● Support Real-time Configuration
● Hot Pluggable QSFP-DD Form Factor
● High-speed Electrical Compliant to IEEE 802.3cd
● 8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
● QSFP-DD port is backward compatible with QSFP+, QSFP28 and QSFP56 modules
| Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
| Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-16 (APC) | Media | MMF |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | -6~4dBm | RX Power | -7.9~4dBm |
| Powerbudget | 1.9dB | Modulation | 8x 50G PAM4 |
| Typical Power Consumption | ≤10W | Extinction Ratio | 3dB |
| DDM/DOM | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
| DSP | TX and RX | Inbuilt FEC | No |
| Protocols | IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0 | Warranty | 5 Years |
| 400Gb/s QSFP-DD Series Optical Transceiver | |||||||||
| Product | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
| QSFP-DD SR8 | QSFP-DD | 200G | 850nm | 100m | VCSEL | PIN | MPO | -6~4dBm | -6.5dBm |
| QSFP-DD LR4 | QSFP-DD | 200G | LWDM4 | 10km | EML | PIN | LC | -2.8~5.3dBm | -7.1dBm |
| QSFP-DD DR4 | QSFP-DD | 200G | 1310nm | 500m | EML | PIN | MPO | -2.9~4dBm | -4.4dBm |
| QSFP-DD FR4 | QSFP-DD | 200G | 1310nm | 2km | EML | PIN | MPO | -3.2~4.4dBm | -4.6dBm |

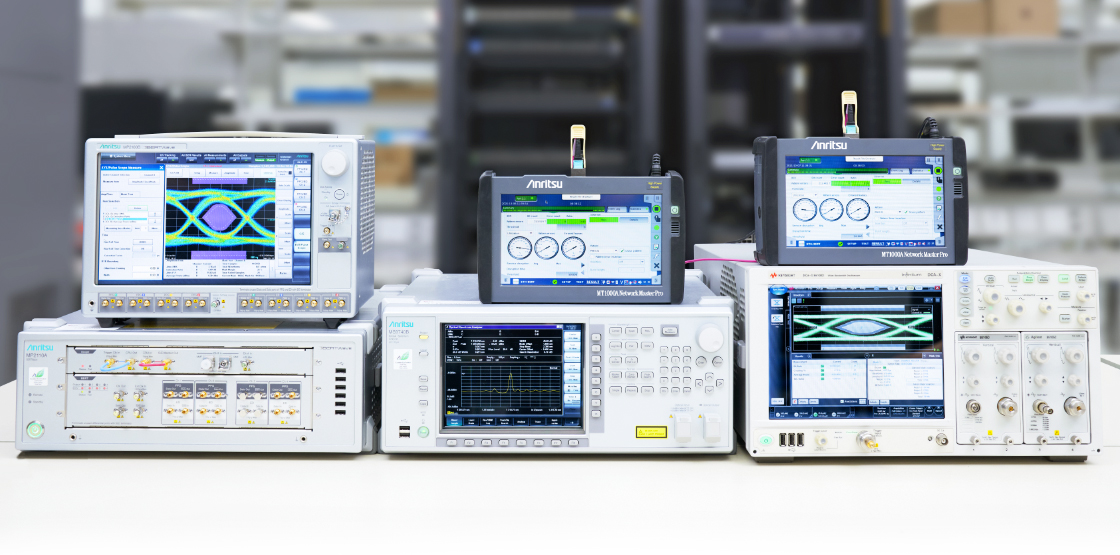

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
