25G 1270nm CWDM SFP28 10km Optical Transceiver Module
SFP28 CWDM
SFP28 transceiver provides 25GBase-CWDM throughput up to 10km over single mode fiber (SMF) using a wavelength of 1270nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Quantity
Product Highlights
● Max. Power Consumption 1.3W
● Tested in Targeted Switch for Superior Performance, Quality, and Reliability
● CWDM for Multiple Applications over One Duplex Fiber
● High-speed Connectivity Compliant to IEEE 802.3cc
● Support Real-time Configuration
● Hot Pluggable SFP28 MSA Compliant
● Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
● Class 1 FDA Laser Safety and RoHS Compliant
SFP28 | 25.78Gbps | ||
1270nm | |||
Duplex | SMF | ||
DFB CWDM | PIN | ||
0~6dBm | ＜-14dBm | ||
| MSA Compliant, CPRI, eCPRI | |||
3.5dB | |||
CDR | TX and RX | FEC Function | Not Supported |
25Gb/s SFP28 Optical Transceiver
| Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
| SFP28 | 25G | 850nm | 100m | VCSEL | PIN | LC | -9.1~2.4dBm | -11dBm |
| SFP28 | 25G | 1310nm | 10KM | DFB | PIN | LC | -5~2dBm | -13dBm |
| SFP28 | 25G | 1270/1330nm | 10KM | DFB | PIN | LC | -5~2dBm | -13.3dBm |
| SFP28 | 25G | 1270/1310nm | 30KM | DFB | APD | LC | 0~5dBm | -18.5dBm |
| SFP28 | 25G | CWDM | 10KM | DFB CWDM | PIN | LC | 0~5dBm | -10.6 dBm |
| SFP28 | 25G | DWDM | 10KM | EML | PIN | LC | -0~5dBm | -10.6 dBm |

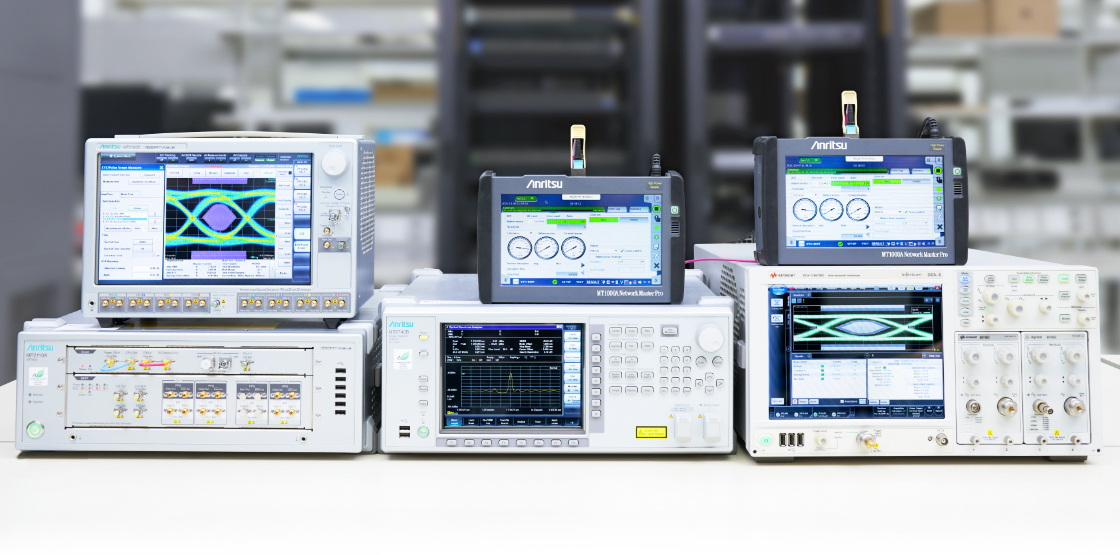

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
