200G QSFP-DD Active Optical Cable
200G AOC
The 200G QSFP-DD active optical cable is designed for use in 200 Gigabit Ethernet links over OM3 multimode fiber. This active optical cable is compliant with QSFP-DD MSA V5.0 and CMIS V4.0. It provides a connection of a 200G QSFP-DD port to another QSFP-DD ports and is suitable for quick and simple connections within racks and across adjacent racks.
Quantity
Product Highlights
● Max. Power Consumption 4W
● Minimum Bend Radius 30mm for Flexible Routing
● Simplifies the Patching and Offers a Cost-effective Way for Short Links
● Compliant to the QSFP-DD MSA V5.0 and CMIS V4.0
● Class 1 Laser Safety
| Wodata Series Active Optical Cables | |||||||||
| Connector Type | Rate | Cable Type | Cable Length | Minimum Bend Radius | Power Consumption | ||||
| SFP+ to SFP+ | 10G | 850nm | **M(＜300M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| SFP28 to SFP28 | 25G | 850nm | **M(＜100M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP+ to QSFP+ | 40G | 850nm | **M(＜300M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP+ to 4SFP+ | 40G | 850nm | **M(＜300M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP28 to QSFP28 | 100G | 850nm | **M(＜100M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP28 to 4*SFP28 | 100G | 850nm | **M(＜100M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP56 to QSFP56 | 200G | 850nm | **M(＜100M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |

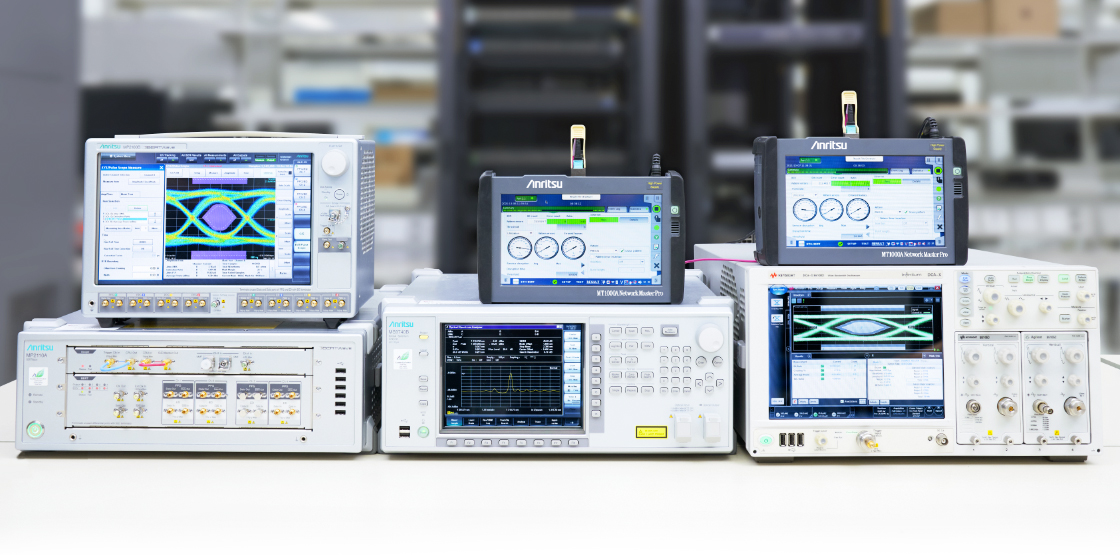

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
