200G SR4 QSFP56 850nm 100m DOM MTP/MPO-12 MMF Optical Transceiver Module
200G SR4
QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
It is compliant with IEEE 802.3 ba 100GBASE-LR4 and ITU-T G.959.1, and OIF CEI-28G-VSR. The MDIO management interface complies with IEEE 802.3 Clause 45 standard. The transceiver complies with CFP MSA CFP4 Hardware Specification, CFP MSA Management Interface Specification, and OIF CEI-28G-VSR standards.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
It is compliant with IEEE 802.3 ba 100GBASE-LR4 and ITU-T G.959.1, and OIF CEI-28G-VSR. The MDIO management interface complies with IEEE 802.3 Clause 45 standard. The transceiver complies with CFP MSA CFP4 Hardware Specification, CFP MSA Management Interface Specification, and OIF CEI-28G-VSR standards.
Quantity
Product Highlights
● Built-in Inphi Chip, Max. Power Consumption 5W
● Tested in Targeted Switches for Superior Performance, Quality, and Reliability
● Hot Pluggable QSFP56 Form Factor
● I2C management interface Based on MSA SFF-8636
● 4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
● High-speed Electrical Compliant to IEEE 802.3bs
● Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
● Class 1 FDA Laser Safety
| Form Factor | QSFP56 | Max Data Rate | 200Gbps |
| Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-12 UPC | Media | MMF |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | -3~3dBm | Receiver Sensitivity | -6.5dBm |
| Powerbudget | 3.5dBm | Receiver Overload | 5dBm |
| Typical Power Consumption | ≤5W | Extinction Ratio | 3dB |
| DDM/DOM | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
| CDR | TX & RX Built-in CDR | Inbuilt FEC | No |
| Protocols | IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636 | Application | 200G Ethernet, Data centers Interconnect, High performance computing |
| 200Gb/s QSFP56 Series Optical Transceiver | |||||||||
| Product | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
| QSFP56 SR4 | QSFP56 | 200G | 850nm | 100m | VCSEL | PIN | MPO | -6.5~4dBm | -7.0dBm |
| QSFP56 DR4 | QSFP56 | 200G | 1310nm | 500m | EML | PIN | MPO | -5.1~4dBm | -6.6dBm |
| QSFP56 FR4 | QSFP56 | 200G | CWDM4 | 2km | DFB | PIN | LC | -5.1~4dBm | -6.0dBm |
| QSFP56 LR4 | QSFP56 | 200G | LWDM4 | 10km | DFB&LWDM | PIN | LC | -3.4~5.3dBm | -7.7dBm |
| QSFP56 ER4 | QSFP56 | 200G | LWDM4 | 40km | DFB&LWDM | APD | LC | 0.4~6.6dBm | -16.5dBm |

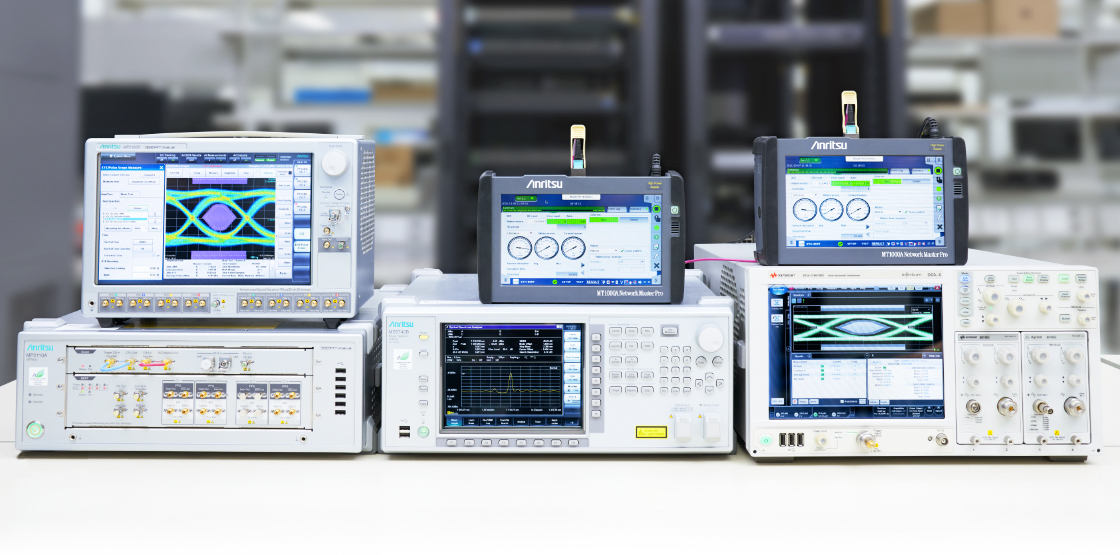

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
