200G LR4 QSFP56 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
200G LR4
Generic Compatible QSFP56 transceiver supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector. This transceiver is compliant with SFF-8661,and IEEE 802.3bs standards.
The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.
The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.
Quantity
Product Highlights
● Built-in Inphi Chip, Max. Power Consumption 8W
● Tested in Targeted Switches for Superior Performance, Quality, and Reliability
● Hot Pluggable QSFP56 Form Factor
● High-speed Electrical Compliant to IEEE 802.3bs
● Compliant with QSFP56 MSA CMIS V4.0
● 4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
● Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
● Class 1 FDA Laser Safety
| Form Factor | QSFP56 | Max Data Rate | 200Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -3.4~5.3dBm | Receiver Sensitivity | ＜-9.7dBm |
| Powerbudget | 6.3dBm | Receiver Overload | 5.1dBm |
| Typical Power Consumption | ≤8W | Extinction Ratio | ＞3.5dB |
| DDM/DOM | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
| CDR | TX & RX Built-in CDR | Inbuilt FEC | No |
| Protocols | IEEE 802.3bs, QSFP56 MSA, SFF-8661 | Warranty | 5 Years |
| 200Gb/s QSFP56 Series Optical Transceiver | |||||||||
| Product | Package | Data Rate | Wavelength | Reach | TX | RX | Connector | TX Power | RX Sensitivity |
| QSFP56 SR4 | QSFP56 | 200G | 850nm | 100m | VCSEL | PIN | MPO | -6.5~4dBm | -7.0dBm |
| QSFP56 DR4 | QSFP56 | 200G | 1310nm | 500m | EML | PIN | MPO | -5.1~4dBm | -6.6dBm |
| QSFP56 FR4 | QSFP56 | 200G | CWDM4 | 2km | DFB | PIN | LC | -5.1~4dBm | -6.0dBm |
| QSFP56 LR4 | QSFP56 | 200G | LWDM4 | 10km | DFB&LWDM | PIN | LC | -3.4~5.3dBm | -7.7dBm |
| QSFP56 ER4 | QSFP56 | 200G | LWDM4 | 40km | DFB&LWDM | APD | LC | 0.4~6.6dBm | -16.5dBm |

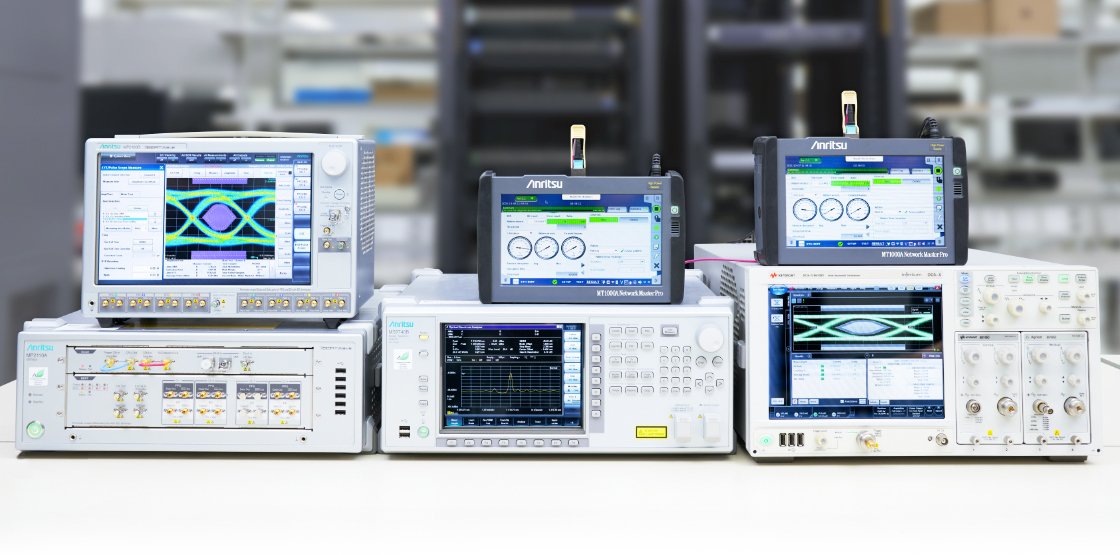

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
