10G ER SFP+ Optical Transceiver

10G ER SFP+ 1550nm 40KM Dual Fiber Optical Transceiver Module

SFP+ ER
SFP-10G-ER Compatible SFP+ transceiver supports up to 40km over OS2 SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and 10GBASE- ER/EW. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fibre Channel etc.
Quantity
Contact Now
add to cart
Product Highlights
  • Hot-pluggable SFP+ footprint
  • Up to 11.3Gpbs rates
  • Single 3.3V power supply
  • Maximum link length of 40km
  • 1550nm EML transmitter, PIN photo-detector
  • Duplex LC connector
  • Power dissipation < 1.5W
  • Built-in digital diagnostic functions
  • Case temperature range ： Commercial: 0°C to +70°C Industrial: -40°C to +85°C
Applications
  • 10GBASE-ER/EW 10G Ethernet
Standard
  • Compliant with SFF-8472 SFP+ MSA.
  • Compliant to SFP+ SFF-8431 and SFF-8432.
  • Compliant to 802.3ae 10GBASE-ER.
  • RoHS Compliant.
Form Factor
SFP+
Max Data Rate
11.3Gbps
Wavelength
1550nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-1~4dBm
Receiver Sensitivity
< -16dBm
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
SFP+ MSA Compliant, CPRI, eCPRI

10Gb/s SFP+ Dual Fiber Optical Transceiver
ModelRateWavelengthTransmission DistanceOutput Opt. Pwr.Rx. SensitivityLaserInterface
FYPP-8596-M3BD10Gb/s850nm300M-6~-1dBm≤-10dBmVCSELLC/SC
FYPP-1396-02BD10Gb/s1310nm2KM-6~-0.5dBm≤-14.4dBmFPLC/SC
FYPP-1396-10BD10Gb/s1310nm10KM-6~-0.5dBm≤-14.4dBmDFPLC/SC
FYPP-1596-40BD10Gb/s1550nm40KM-1~3dBm≤-16dBmEMLLC/SC
FYPP-1596-80BD10Gb/s1550nm80KM-1~4dBm≤-23dBmEMLLC/SC
FYPPC-**96-10BD10Gb/s1270nm~1610nm10KM-6~-1dBm≤-15dBmDFPLC/SC
FYPPC-**96-40BD10Gb/s1470nm~1610nm40KM-1~3dBm≤-16dBmEMLLC/SC
FYPPC-**96-80BD10Gb/s1470nm~1610nm80KM-1~4dBm≤-23dBmEMLLC/SC
FYPPD-**96-40BD10Gb/sC17~C6140KM-1~3dBm≤-16dBmEMLLC/SC
FYPPD-**96-80BD10Gb/sC17~C6180KM-1~4dBm≤-23dBmEMLLC/SC

Remark: Above"**"refers to the corresponding wavelength.

For CWDM models, it refers to the wavelength 1270nm~1610nm.

For DWDM models, it refers to the wavelength C17(1563.86)~C61(1528.77nm).

10Gb/s SFP+BIDI Single Mode Optical Transceiver

ModelRateWavelengthTransmission DistanceOutput Opt. Pwr.Rx. SensitivityLaserInterface
FYPPB-2396-10BD10Gb/sTx1270/Rx1330nm10KM-6~-0.5dBm≤-14.4dBmDFPLC
FYPPB-3296-10BD10Gb/sTx1330/Rx1270nm10KM-6~-0.5dBm≤-14.4dBmDFPLC
FYPPB-2396-40BD10Gb/sTx1270/Rx1330nm40KM-1~3dBm≤-16dBmDFPLC
FYPPB-3296-40BD10Gb/sTx1330/Rx1270nm40KM-1~3dBm≤-16dBmDFPLC
FYPPB-2396-60BD10Gb/sTx1270/Rx1330nm60KM0~5dBm≤-20dBmDFPLC
FYPPB-3296-60BD10Gb/sTx1330/Rx1270nm60KM0~5dBm≤-20dBmDFPLC
FYPPB-4596-80BD10Gb/sTx1490/Rx1550nm80KM-1~4dBm≤-23dBmEMLLC
FYPPB-5496-80BD10Gb/sTx1550/Rx1490nm80KM-1~4dBm≤-23dBmEMLLC

10G ER SFP+ Optical Transceiver
10G ER SFP+ Optical Transceiver

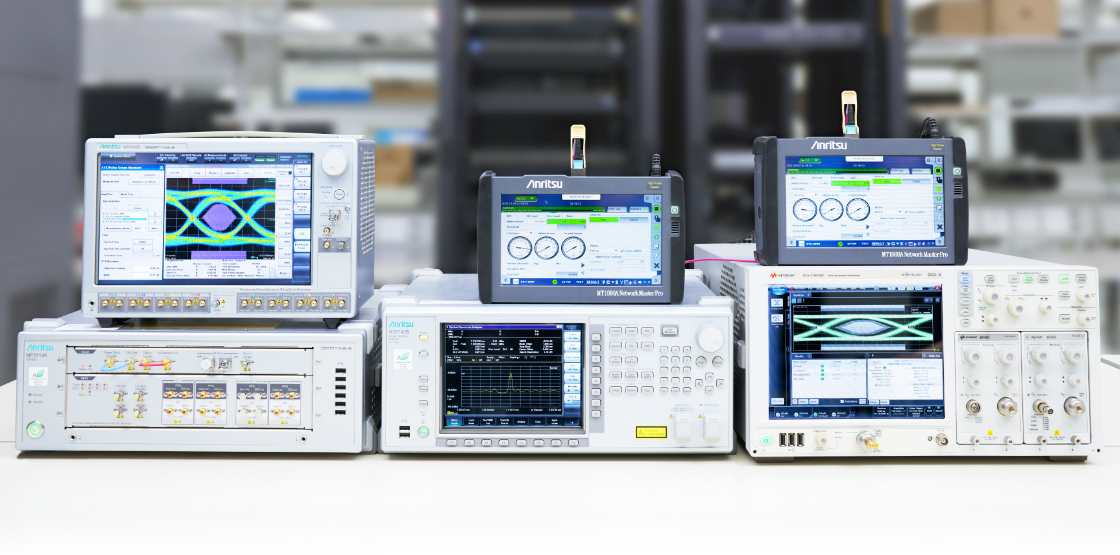

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
10G ER SFP+ Optical Transceiver
