100G ZR4 QSFP28 1310nm 80km Optical Transceiver

QSFP28 ZR4

QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard.
Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, telecom and data center.

Quantity

Contact Now

add to cart

Product Highlights

Max. Power Consumption 6W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP28 MSA Compliant
High-Speed Electrical Interface Compliant to IEEE 802.3bm
FS BOX - Support Real-time Configuration
Reach Long Distance Solutions for Up to 80km
Adopt BOX Packaging, with Great Reliability, Airtightness, and Heat Dissipation Performance
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

Form Factor	QSFP28	Max Data Rate	103.125Gbps(4*25.78Gbps)
Wavelength	1310nm	Max Cable Distance	80km
Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	APD
TX Power	2~6.5dBm	Minimum Receiver Power	-28dBm
Powerbudget	31dB	Receiver Overload	2dBm
Typical Power Consumption	≤6W	Extinction Ratio	>6dB
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
CDR (Clock and Data Recovery)	TX & RX Built-in CDR	Modulation Format	NRZ
Protocols	QSFP28 MSA Compliant

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.

Distance	≤ 10km	≤ 25km	≤ 35km
Attenuator	15dB	10dB	5dB

100Gb/s QSFP28 Series Optical Transceiver
Package Style	QSFP28 SR4	QSFP28 LR4	QSFP28 ER4	QSFP28 ZR4
Wavelength	850nm	LAN WDM	LAN WDM	1310nm
TX Output(DBM)	-8.4～2.4	-4.3～4.5	-2.5～6.5	2~6.5dBm
RX Sensitivity(DBM)	-10.3	-10.6	-18	-28
Reach	150M	10KM	30/40KM	80km
Interface	MPO	LC	LC	LC
Fiber Type	MM	SM	SM	SM

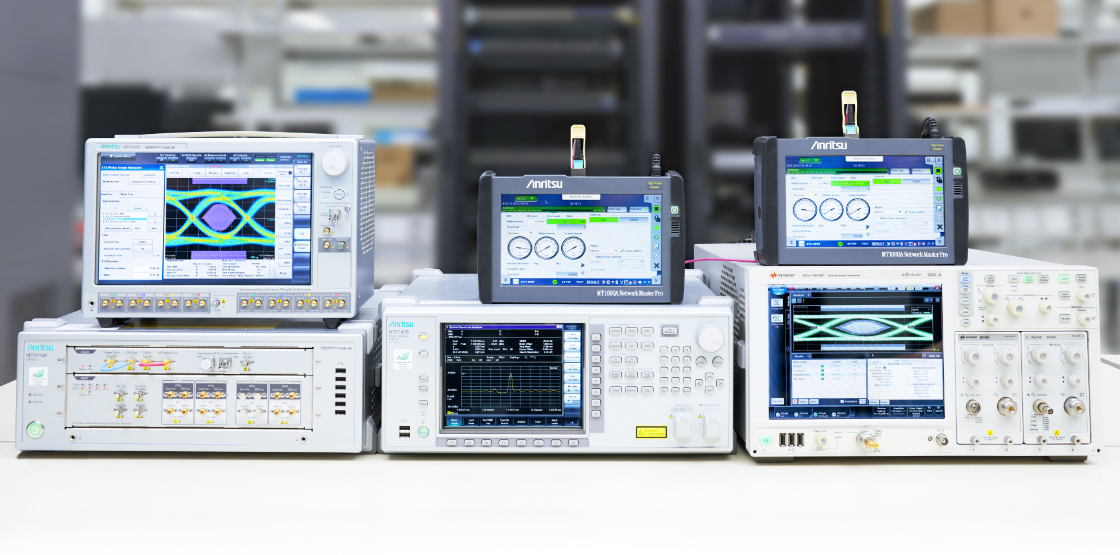

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
