40G SR4 QSFP+ 850nm 150m Optical Transceiver

QSFP+ SR4

The QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.

Quantity

Contact Now

add to cart

Product Highlights

Max. Power Consumption 1.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3ba
Support 40G to 4x10G Breakout Application
WD BOX - Support Real-time Configuration
Compliant to SFF-8436 and QSFP MSA
Hot Pluggable QSFP+ Form Factor
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

Form Factor	QSFP+	Max Data Rate	41.25Gbps(4x10.3125Gbp)
Wavelength	850nm	Max Cable Distance	150m@OM4/100m@OM3
Connector	MTP/MPO12Mae	Media	MMF
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-7.1~1.9dBm	Receiver Sensitivity	-10.3dBm
Powerbudget	3.5dB	Receiver Overload	2.4dBm
Typical Power Consumption	<1.5W	Extinction Ratio	＞3dB
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
Bit Error Ratio (BER)	1E-12
Protocols	IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636

40Gb/s QSFP+ Optical Transceiver

PACKAGE STYLE	QSFP+ SR4	QSFP+ LR4	QSFP+ ER4	QSFP+ ZR4
WAVELENGTH	850nm	CWDM	CWDM	1310nm
TX OUTPUT(DBM)	-7.6～0.5	-7～2.3	-3.7～4.5	1~6dBm
RXSENSITIVITY(DBM)	-9.5	-11.5	-15.8	<-25dBm
REACH	150M	10KM	40KM	80km
INTERFACE	MPO	LC	LC	Duplex LC
FIBER TYPE	MM	SM	SM	SM

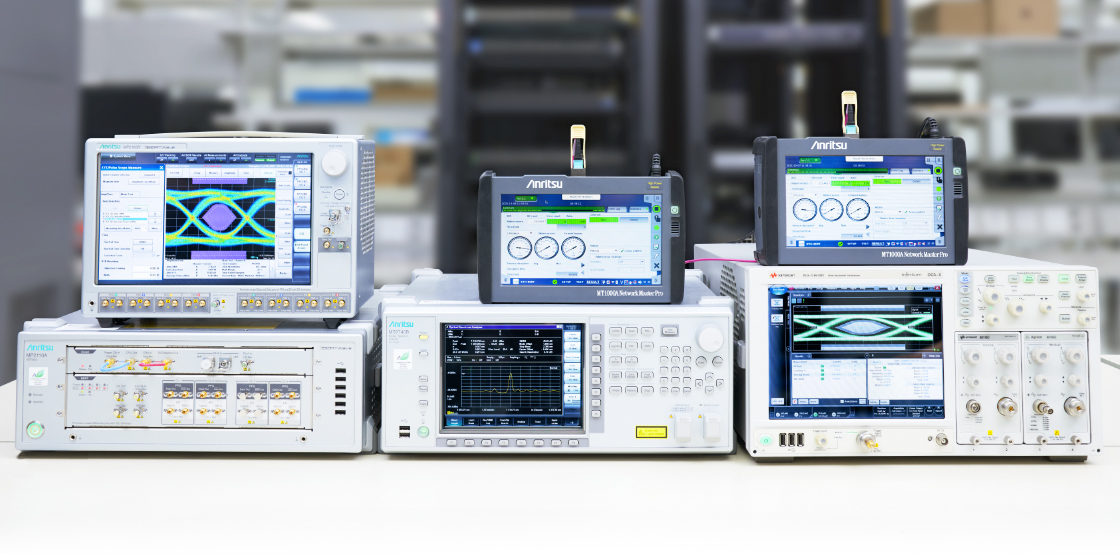

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
