40G QSFP+ to 4x10G SFP+ Breakout Active Optical Cable
40G QSFP+ to 4x10G SFP+ AOC
40G QSFP+ to 4 SFP+ Breakout Active Optical Cable operates over Multi-Mode Fiber (MMF). This breakout cable is compliant with SFF-8436, SFF-8431 and SFP+ & QSFP MSA standards.
It provides a connection of a 40G QSFP+ port on one end and to four 10G SFP+ ports on the other end and is suitable for quick and simple connections within racks and across adjacent racks.
It provides a connection of a 40G QSFP+ port on one end and to four 10G SFP+ ports on the other end and is suitable for quick and simple connections within racks and across adjacent racks.
Quantity
Product Highlights
● Max. Power Consumption 1.3W @QSFP+, 1W @SFP+
● Tested in Targeted Switches for Superior Performance, Quality, and Reliability
● Minimum Bend Radius 7.5mm for Flexible Routing
● Supports 40G to 4x 10G Ethernet Interoperability
● Simplifies the Patching and Offers a Cost-effective Way for Short Links
● Support Real-time Configuration
● Hot Pluggable QSFP+ and SFP+ MSA Compliant
● Class 1 FDA Laser Safety and RoHS Compliant
| Wodata Series Active Optical Cables | |||||||||
| Connector Type | Rate | Cable Type | Cable Length | Minimum Bend Radius | Power Consumption | ||||
| SFP+ to SFP+ | 10G | 850nm | **M(＜300M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| SFP28 to SFP28 | 25G | 850nm | **M(＜100M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP+ to QSFP+ | 40G | 850nm | **M(＜300M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP+ to 4SFP+ | 40G | 850nm | **M(＜300M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP28 to QSFP28 | 100G | 850nm | **M(＜100M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP28 to 4*SFP28 | 100G | 850nm | **M(＜100M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |
| QSFP56 to QSFP56 | 200G | 850nm | **M(＜100M) | VCSEL | PIN | Optical Cable | 1m (3.28ft) | 7.5mm | <1W |

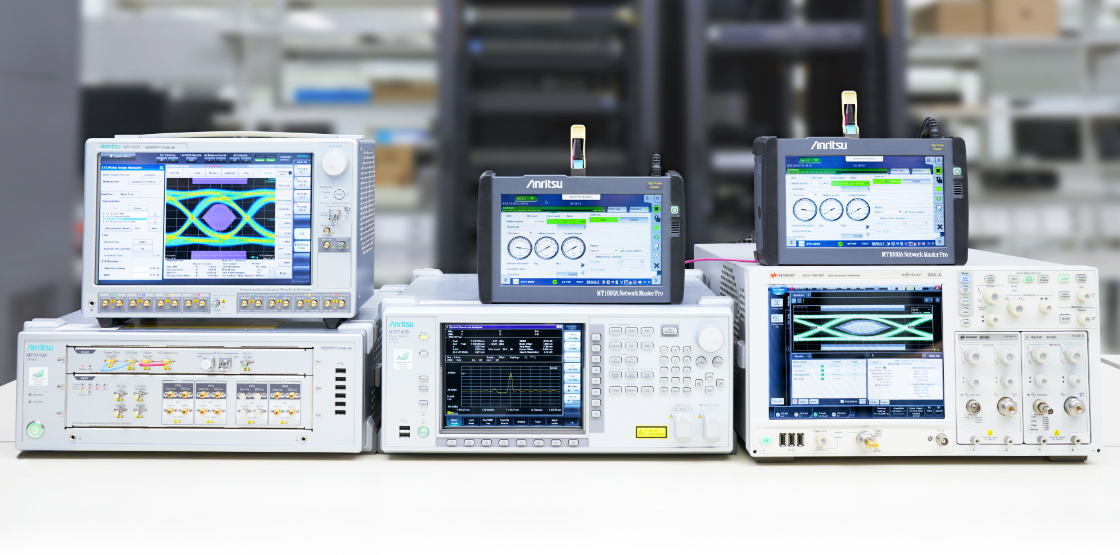

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
