10G SR SFP+ 850nm 300m Dual Fiber Optical Transceiver Module

SFP+ SR

SFP-10G-SR compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.

Quantity

Contact Now

add to cart

Product Highlights

Up to 11.1Gbps Data Links
850nm VCSEL transmitter, PIN photo-detector
Up to 300m transmission on MMF
Duplex LC connector
Metal enclosure, for lower EMI
Electrical interface compliant to SFF-8431
Power dissipation < 1W
2-wire interface for management
Specifications compliant with SFF 8472
Compliant with SFP+ MSA with LC connector
Single 3.3V power supply
Case operating temperature range: 0°C to +70°C

Form Factor	SFP+	Max Data Rate	10.3125Gbps
Wavelength	850nm	Max Cable Distance	300m@OM3/400m@OM4
Connector	Duplex LC	Media	MMF
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-7.3~-1dBm	Receiver Sensitivity	< -11.1dBm
Powerbudget	3.8dB	Receiver Overload	-4.5dBm
Typical Power Consumption	<1W	Extinction Ratio	>3dB
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI

10Gb/s SFP+ Dual Fiber Optical Transceiver

Model	Rate	Wavelength	Transmission Distance	Output Opt. Pwr.	Rx. Sensitivity	Laser	Interface
FYPP-8596-M3BD	10Gb/s	850nm	300M	-6~-1dBm	≤-10dBm	VCSEL	LC/SC
FYPP-1396-02BD	10Gb/s	1310nm	2KM	-6~-0.5dBm	≤-14.4dBm	FP	LC/SC
FYPP-1396-10BD	10Gb/s	1310nm	10KM	-6~-0.5dBm	≤-14.4dBm	DFP	LC/SC
FYPP-1596-40BD	10Gb/s	1550nm	40KM	-1~3dBm	≤-16dBm	EML	LC/SC
FYPP-1596-80BD	10Gb/s	1550nm	80KM	-1~4dBm	≤-23dBm	EML	LC/SC
FYPPC-**96-10BD	10Gb/s	1270nm~1610nm	10KM	-6~-1dBm	≤-15dBm	DFP	LC/SC
FYPPC-**96-40BD	10Gb/s	1470nm~1610nm	40KM	-1~3dBm	≤-16dBm	EML	LC/SC
FYPPC-**96-80BD	10Gb/s	1470nm~1610nm	80KM	-1~4dBm	≤-23dBm	EML	LC/SC
FYPPD-**96-40BD	10Gb/s	C17~C61	40KM	-1~3dBm	≤-16dBm	EML	LC/SC
FYPPD-**96-80BD	10Gb/s	C17~C61	80KM	-1~4dBm	≤-23dBm	EML	LC/SC

Remark: Above"**"refers to the corresponding wavelength.

For CWDM models, it refers to the wavelength 1270nm~1610nm.

For DWDM models, it refers to the wavelength C17(1563.86)~C61(1528.77nm).

10Gb/s SFP+BIDI Single Mode Optical Transceiver

Model	Rate	Wavelength	Transmission Distance	Output Opt. Pwr.	Rx. Sensitivity	Laser	Interface
FYPPB-2396-10BD	10Gb/s	Tx1270/Rx1330nm	10KM	-6~-0.5dBm	≤-14.4dBm	DFP	LC
FYPPB-3296-10BD	10Gb/s	Tx1330/Rx1270nm	10KM	-6~-0.5dBm	≤-14.4dBm	DFP	LC
FYPPB-2396-40BD	10Gb/s	Tx1270/Rx1330nm	40KM	-1~3dBm	≤-16dBm	DFP	LC
FYPPB-3296-40BD	10Gb/s	Tx1330/Rx1270nm	40KM	-1~3dBm	≤-16dBm	DFP	LC
FYPPB-2396-60BD	10Gb/s	Tx1270/Rx1330nm	60KM	0~5dBm	≤-20dBm	DFP	LC
FYPPB-3296-60BD	10Gb/s	Tx1330/Rx1270nm	60KM	0~5dBm	≤-20dBm	DFP	LC
FYPPB-4596-80BD	10Gb/s	Tx1490/Rx1550nm	80KM	-1~4dBm	≤-23dBm	EML	LC
FYPPB-5496-80BD	10Gb/s	Tx1550/Rx1490nm	80KM	-1~4dBm	≤-23dBm	EML	LC

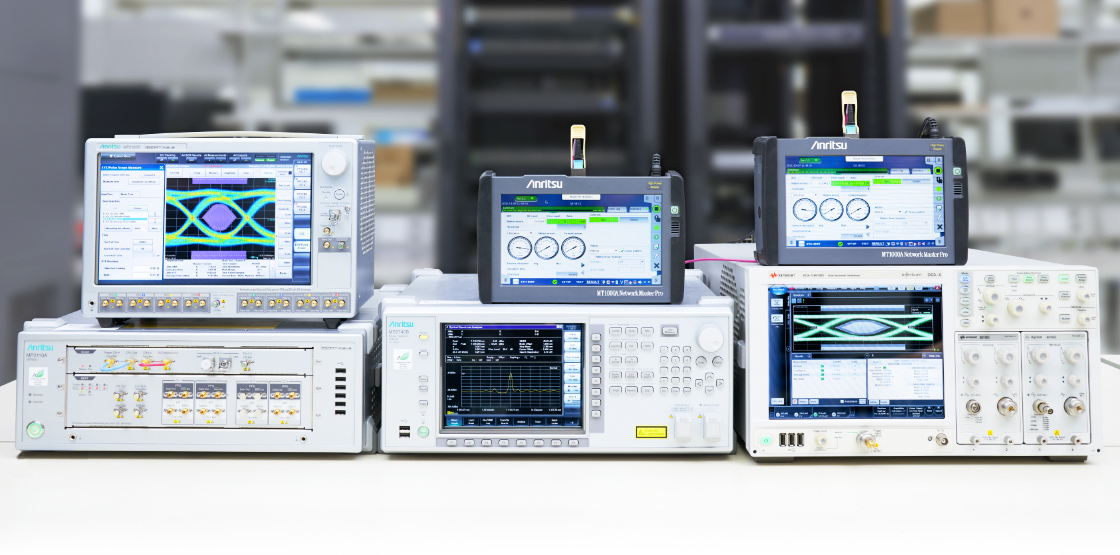

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
